MILLING CUTTERS
IMCO SOLID CARBIDE END MILLS 2 FLUTE SQUARE END, METRIC SIZE
- S97-2
Description:

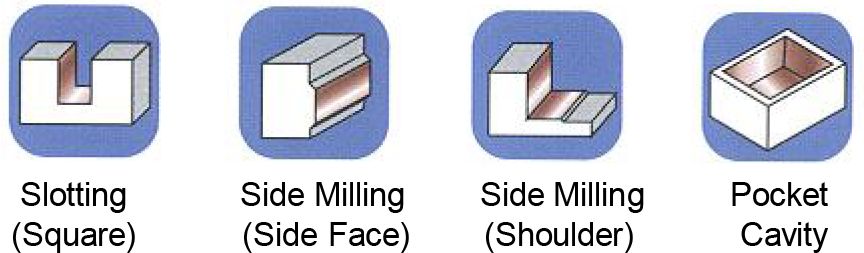

Manufactured from micrograin carbide with 10% cobalt. The 2-flute design gives more flute volume which reduces flute packing at higher feed rates. Recommended for milling cast iron, non-ferrous metals, low alloyed steels, plastics and other easily machined materials.
30° RH Helix
P273 Share

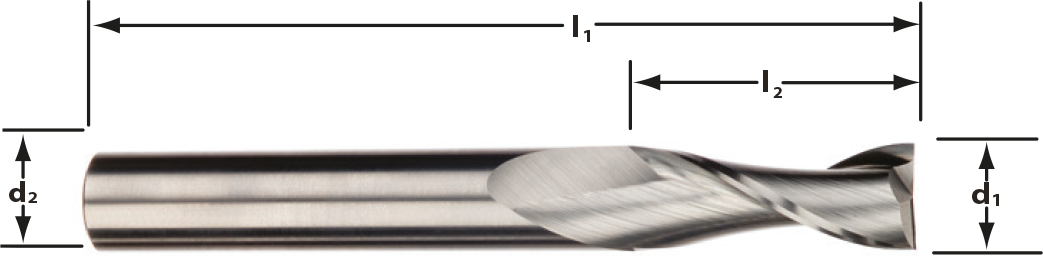

| ITEM NO. | CODE NO. | d1 Cutter Dia (mm) | d2 Shank Dia (mm) | l2 Flute Lgth Dia (mm) | l2 Overall Lgth Dia (mm) | Quantity |
|---|---|---|---|---|---|---|
| 097-02-020 | 31433 | 2.0 | 3.0 | 6.3 | 38 | |
| 097-02-025 | 31434 | 2.5 | 3.0 | 9.5 | 38 | |
| 097-02-030 | 31435 | 3.0 | 3.0 | 12.0 | 38 | |
| 097-02-035 | 31436 | 3.5 | 4.0 | 14.0 | 50 | |
| 097-02-040 | 31437 | 4.0 | 4.0 | 14.0 | 50 | |
| 097-02-045 | 31438 | 4.5 | 5.0 | 16.0 | 50 | |
| 097-02-050 | 31439 | 5.0 | 5.0 | 16.0 | 50 | |
| 097-02-060 | 31440 | 6.0 | 6.0 | 19.0 | 63 | |
| 097-02-070 | 31441 | 7.0 | 8.0 | 19.0 | 63 | |
| 097-02-080 | 31442 | 8.0 | 8.0 | 20.0 | 63 | |
| 097-02-090 | 31443 | 9.0 | 10.0 | 22.0 | 72 | |
| 097-02-100 | 31444 | 10.0 | 10.0 | 25.0 | 72 | |
| 097-02-120 | 31445 | 12.0 | 12.0 | 25.0 | 76 | |
| 097-02-140 | 34443 | 14.0 | 14.0 | 32.0 | 83 | |
| 097-02-160 | 31447 | 16.0 | 16.0 | 32.0 | 89 |
