MILLING CUTTERS
IMCO SOLID CARBIDE END MILLS 4 FLUTE BALL END, METRIC SIZE
- S97-3
Description:

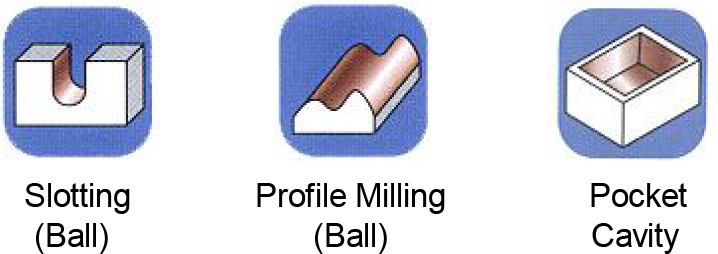

Manufactured from micrograin carbide with 10% cobalt. The 4-flute design increases core thickness and tool strength which reduces tool deflection and increases size accuracy. The reduced chip load provides improved surface finishes. Recommended for use on cast iron, tool steel, stainless steel & PH Series.
30° RH Helix
P274 Share

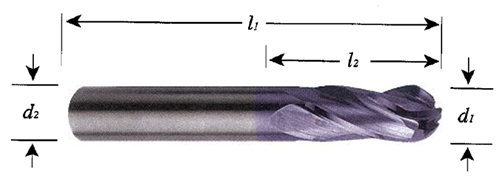

| ITEM NO. | CODE NO. | d1 Cutter Dia (mm) | d2 Shank Dia (mm) | l2 Flute Lgth Dia (mm) | l2 Overall Lgth Dia (mm) | Quantity |
|---|---|---|---|---|---|---|
| 097-03-020 | 38618 | 2.0 | 3.0 | 9.0 | 38 | |
| 097-03-025 | 32644 | 2.5 | 3.0 | 9.5 | 38 | |
| 097-03-030 | 32645 | 3.0 | 3.0 | 12.0 | 38 | |
| 097-03-035 | 32646 | 3.5 | 4.0 | 14.0 | 50 | |
| 097-03-040 | 32647 | 4.0 | 4.0 | 14.0 | 50 | |
| 097-03-045 | 32648 | 4.5 | 5.0 | 16.0 | 50 | |
| 097-03-050 | 32649 | 5.0 | 5.0 | 16.0 | 50 | |
| 097-03-060 | 32650 | 6.0 | 6.0 | 19.0 | 63 | |
| 097-03-070 | 32651 | 7.0 | 8.0 | 19.0 | 63 | |
| 097-03-080 | 32652 | 8.0 | 8.0 | 20.0 | 63 | |
| 097-03-090 | 32653 | 9.0 | 10.0 | 22.0 | 72 | |
| 097-03-100 | 32654 | 10.0 | 10.0 | 25.0 | 72 | |
| 097-03-120 | 32655 | 12.0 | 12.0 | 25.0 | 76 | |
| 097-03-140 | 34567 | 14.0 | 14.0 | 32.0 | 83 | |
| 097-03-160 | 32657 | 16.0 | 16.0 | 32.0 | 89 |
