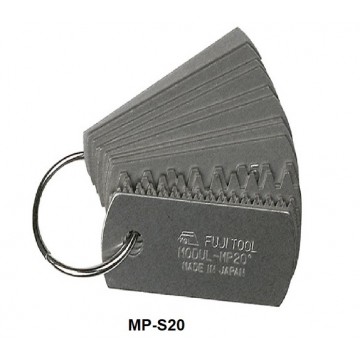

"FUJI TOOL" GEAR TOOTH GAUGE NO. MP-L20, MP-S20
- S82-24Y-MP-L20 / MP-S20
Description:
This involute gear tooth gauge provides quick and easy way to determine the diametral pitch and module pitch (metric) on a gear.
Material : Steel (SPCC)
P170 Share
| ITEM NO. | MODEL | Pressure Angle | No. of Blades | Accuracy | Size (mm) | Quantity |
|---|---|---|---|---|---|---|
| 082-24Y-MPL20 | MP-L20 | 20° | 7" | ±0.1 | 6.0 7.0 8.0 9.0 10.0 11.00 12.0 | |
| 082-24Y-MPS20 | MP-S20 | 20° | 13" | ±0.05 | 0.5 0.75 1.0 1.25 1.5 1.75 2.0 2.25 2.5 2.75 3.0 3.25 3.5 3.75 4.0 4.5 5.0 |
