HYDRAULIC CRIMPING TOOLS & DIES

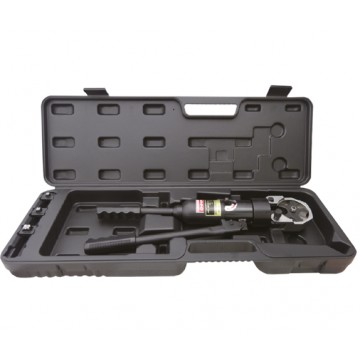

OPT HYDRAULIC CRIMPING TOOLS WITH DIE AND PUNCH - TP-150D
- S27-73-TP150D
Description:
Hydraulic Crimping Tool With Die and Punch For Non-Insulated Terminal Up to 185mm²
• Output 12 Tons
• JIS 14 - 150 mm²
• DIN 16 - 185 mm²
• AWG 6 - 300 MCM
Comes With
3 Pcs Punch 16-25, 35-70, 70-185 mm²
1 Pce Die 16, 25-35, 50-60, 70-120, 150-185 mm²
P121 Share
| ITEM NO. | MODEL | LENGTH(MM) | WEIGHT(KG) | PACKING (PCS/BOX) | Quantity |
|---|---|---|---|---|---|
| 027-73-TP150D | TP-150D | 528 | 5.2 | 1 |
