GENERAL HAND TOOLS
IIDA LIVE CENTRE
- S30-9-LC
Description:
IIDA Live Centre equipped with triple bearing mechanism. For high speed and medium to heavy radial cutting thrust. Hardened to 61° - 65° RC and Ground.

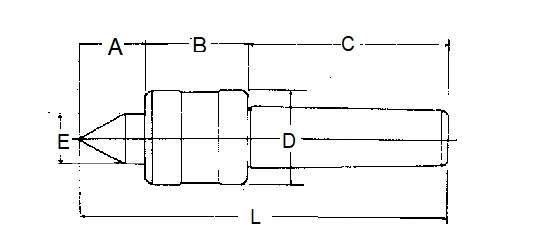

| Model | Dimensions | |||||
| No. | A | B | C | D | E | L |
| (mm) | ||||||
| MT No. 2 | 24 | 37 | 69 | 40 | 18 | 130 |
| MT No. 3 | 32 | 44 | 85 | 45 | 25 | 161 |
| MT No. 4 | 32 | 44 | 108 | 45 | 25 | 184 |
| MT No. 5 | 49 | 70 | 136 | 78 | 38 | 255 |
| MT No. 6 | 62 | 82 | 189 | 102 | 55 | 333 |
P136 Share
| ITEM NO. | MODEL NO. | WEIGHT | Quantity |
|---|---|---|---|
| 030-09-LC2 | MT No. 2 | 440 g | |
| 030-09-LC4 | MT No. 4 | 1030 g | |
| 030-09-LC6 | MT No. 6 | 8000 g |
